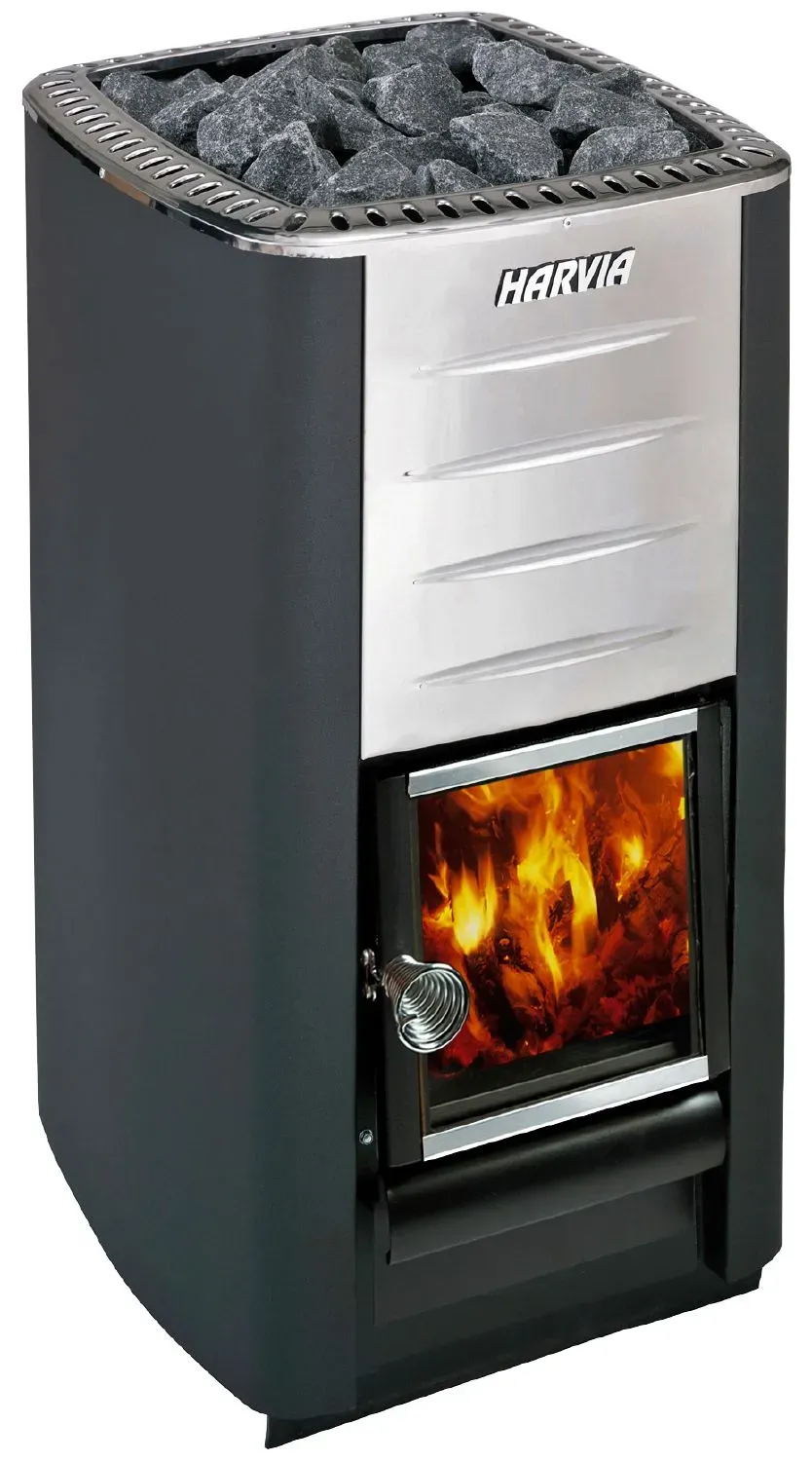

Harvia M3
SKU:MDSHM3
$1250.00
-
Description
The Harvia M3 has a classic design and is suitable for small saunas. It turns a sauna bath into a pleasurable experience and adds a touch of traditional sauna atmosphere. The even heat and efficient air circulation guarantee an enjoyable bath.
The Harvia M3 is equipped with a glass door, allowing the warm glow of the fire to complement the sauna atmosphere. The color of the wood burning heater is elegant graphite black and it has a stainless steel air-flow spoiler. The M3 wood burning heater can be equipped with a pipe model water heater.
-
Specifications
Model WKM3 Stone capacity max. lbs (kg) 66 (30) Dimensions width in (mm) 15 3/8 (390) Dimensions height in (mm) 28 (710) Dimensions depth in (mm) 17 (430) Weight lbs (kg) 99 (45) Heater output kW 16,5 Safety distance to sides and back, masonry walls E, in (mm) 2 (50) Safety distance to sides (B) and back (C), walls and benches made of inflammable materials, in (mm) 11 7/8 (300) Safety distance to front (D) in (mm) 11 7/8 (300) Safety distance from upper surface to ceiling A min. in (mm) 51 1/8 (1300) Fire chamber cover in (mm) 3/16 (5) Location of smoke outlets at rear: from floor to centre of hole in (mm) 22 (560) Location of smoke outlets on top: from rear edge to centre of hole in (mm) 4 3/4 (120) Diameter of smoke outlet in (mm) 4 1/2 (115) -
Resources
Please Click on Links to view PDF documents
